Innovation Details

Name : 1. JAWAAZ AHMAD, 2. SHAHKAR AHMAD NAHVI

Phone : 7889419668

Email : jawaaz@iust.ac.in

University : Islamic University of Science and Technology - Awantipora

Department : Science and Technology

Patent No : 202411078081

Innovation No : 621894

Dated : 16-10-2024

Type : Innovation

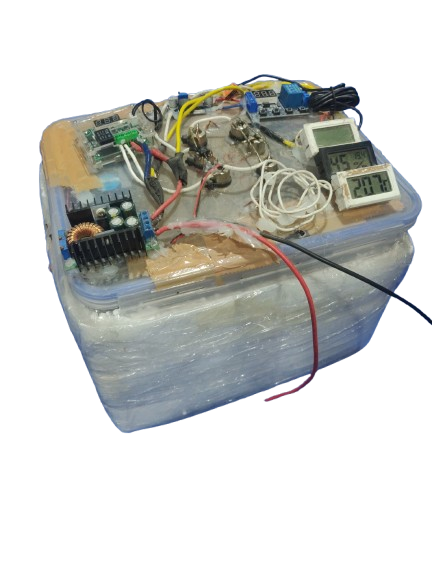

The present invention relates to a fully automatic egg incubator designed to maintain optimal conditions for hatching eggs. The incubator features a transparent plastic container insulated with Styrofoam, six DC heat bulbs regulated by a buck converter, and a programmable temperature control system. It includes a dual-tray system with automated egg rotation powered by a high torque motor, simulating natural egg-turning. The incubator also incorporates independent temperature and humidity sensors, ensuring precise environmental monitoring. A water reservoir provides consistent humidity, while air vents and radial impeller fans ensure even airflow. The incubator’s user interface allows for the customization of temperature, humidity, and rotation schedules, making it adaptable to various egg types. The design is scalable, offering flexibility for small or large capacities. This invention enhances hatch rates by providing a fully automated, consistent, and controlled environment for egg incubation
